2018 wholesale price Cng Pressure Regulator - ER10/ER25 SERIES PRESSURE REGULATORS – Ainuo Technology Detail:

INTERNAL RELIEF VALVLE AND FILTER

OPTIONAL MAXIMUM AND/OR MINIMUM PRESSURE SLAM-SHUT VALVE

WIDE OUTLET-PRESSURE REGULATION RANGE

ACCURATE PRESSURE REGULATION

MANUAL RESET

TWO-STAGE REGULATION

ER10ER15

LQ10LQ25 series is direct acting of two-level regulator, Widely used for transmission and distribution of nature gas,liquefied petroleum gas or other non-corrosive gas for industrial users and residential users.Built-in filter,relief valve and overpressure cut off protection devices.With characterstics of small size,easy to stall,pressure stability,rapid reponse.

TECHNICAL DATA

Inlet pressure Pemax.≤6 bar
Inlet pressure range Bpe:0.5-5 bar
Outlet pressure set  range Wh:15-100 mbar
Shut-off accuracy class AG: ≤5%
Regulate accuracy class AC: ±5%
Response time Ta: ≤1 sec
Lock-up pressure class SG: +10%
Flow rate (natural gas) Qmax. ≤25Nm³/h
Operating temprature -20℃-60℃
Threaded connection 3/4”Χ1 1/4”
Ambient temperature -30℃-60℃
Weight 2kg

CAPACITY CHART

The flow unit is standard cubic meters/hour.The flow of nature gas is relative density of 0.6 under standard condicions.



Outlet pressure

mbar

Inlet pressurebar

0.05

bar

0.1

bar

0.25

bar

0.5

bar

0.75

bar

1.

bar

1-6

bar

15

5

12

17

25

25

25

25

20

4

12

17

25

25

25

25

30

-

10

17

25

25

25

25

40

-

5

12

25

25

25

25

50

-

-

12

25

25

25

25

60

-

-

10

25

25

25

25

70

-

-

-

25

25

25

25

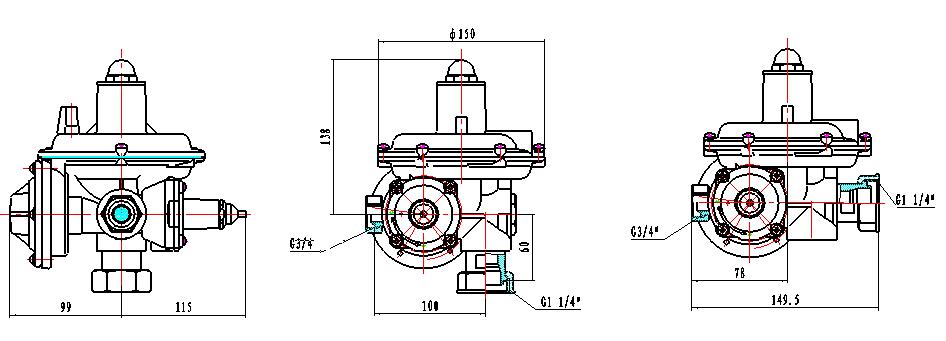

OUTLINE DIMENSIONS (mm)

aaaaz

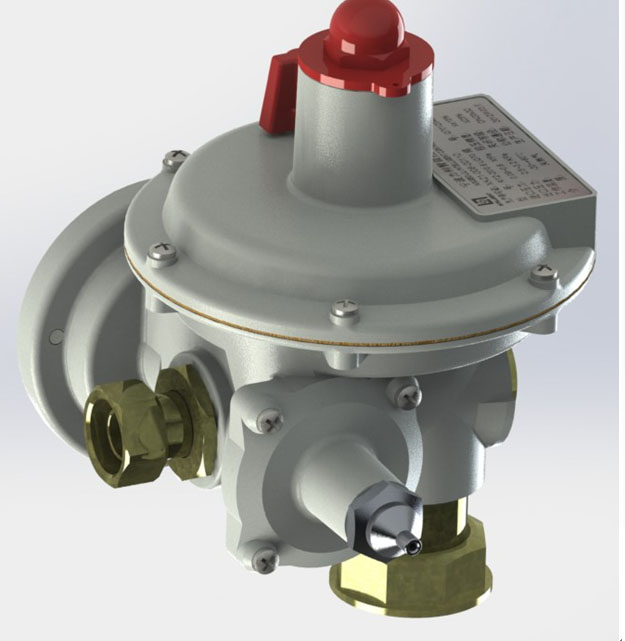

Product detail pictures:

2018 wholesale price Cng Pressure Regulator -
 ER10/ER25 SERIES PRESSURE REGULATORS – Ainuo Technology detail pictures
