Factory wholesale Stainess Steel Gas Regulator - E1301 REGULATORS – Ainuo Technology Detail:

E1301

“E1301” High Pressure Regulator

Features

•6000 psi Inlet Pressure

•Rugged Construction

•Cost Effective

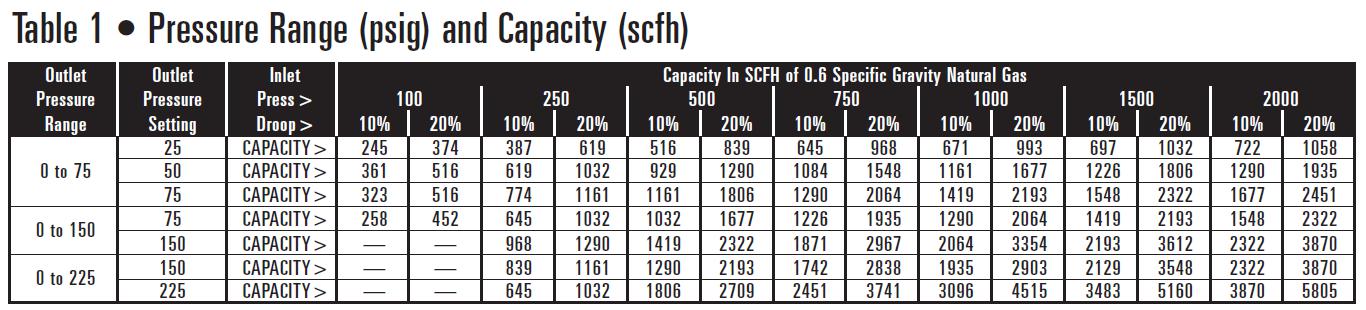

•Three Outlet Ranges (See Table 1)

Specifications

Maximum Inlet . . . . .. . . . . .    . . . . . .6000 psi

Port Size . . . . . .. . . . . . . . .  . . . . . . .1/4″ FNPT

(One Inlet and Three Outlet Connections)

Vent . . . . . . . . . . . . . . . . . . . .Four Holes,  5/32″

Materials . . . . … . . . . . . . .Brass or Nickel Plated

Temperature . . .. . .. . . . . . . . . . . .-20ºF to 180ºF

Outlet Range . . . . . . . . . . . . . . . . . . . .0 to 75 psi

(Cv) Flow Coefficient . . . . . . . . . . . . .Approx. .13

Application

A direct-acting, self-operated, high pressure gas regulator. Effectivereduction of high-pressure gas to operate controllers, valve actua-tors and chemical injection pumps as well as to supply fuel gas topilot operated fire tubes on various production equipment.

Rugged “oilfield” design with multi-purpose application reliability.It’s what makes this high pressure regulator the number one choicefor reducing large inlet pressures to supply pressures required byother pneumatic driven devices.

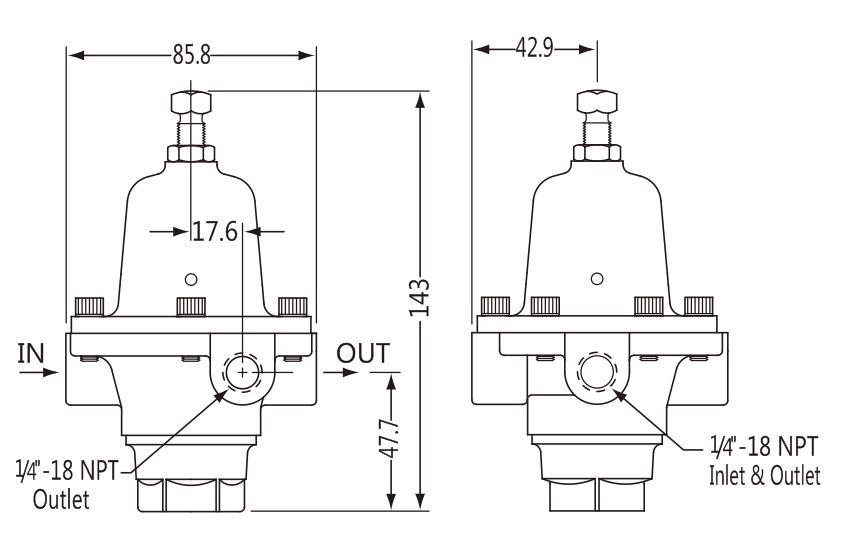

Dimensional Data(mm)

vwdevwe
vwqevwe

E1301” High Pressure Regulator

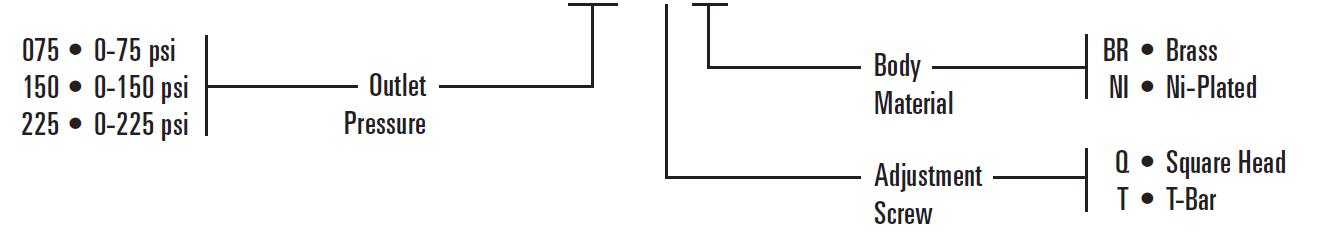

Determining the Model Number

Example given: Standard Model 150-QBR, Series 1301 Regulator, 0-150 psi Outlet Pressure Range, Square Head Adjustment and Brass Body.

“E1301” Model 150 – Q BR

vwsgver
wqeqwz
