Short Description:
BALANCED VALVE FULL SEAL AT ZERO FLOW OPTIONAL MAXIMUM AND/OR MINIMUM PRESSURE SLAM-SHUT VALVE WIDE OUTLET-PRESSURE REGULATION RANGE ACCURATE PRESSURE REGULATION LT30 serials regulator is a diaphragm and spring controlled direct acting regulator.Widely used in medium-sized commercial facilities and regional.Built-in with relief valve and ultra low-pressure safety devices.The regulator has characteristics of simple structure,convenient operation,easy maintenance online,etc. TECHNICAL DATA ...
Factory best selling Pressure Regulator Valve Dn65 - LT30 SERIES PRESSURE REGULATORS – Ainuo Technology Detail:
BALANCED VALVE
FULL SEAL AT ZERO FLOW
OPTIONAL MAXIMUM AND/OR MINIMUM PRESSURE SLAM-SHUT VALVE
WIDE OUTLET-PRESSURE REGULATION RANGE
ACCURATE PRESSURE REGULATION

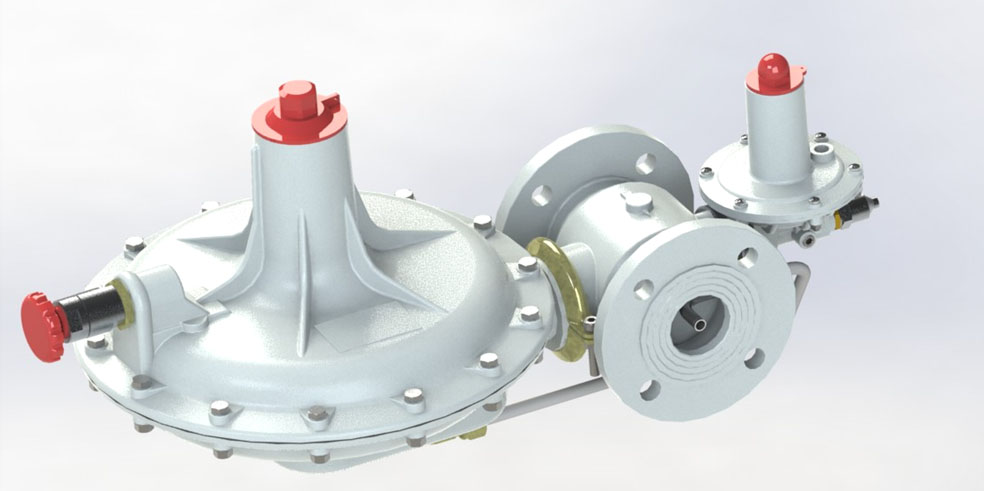

LT30 serials regulator is a diaphragm and spring controlled direct acting regulator.Widely used in medium-sized commercial facilities and regional.Built-in with relief valve and ultra low-pressure safety devices.The regulator has characteristics of simple structure,convenient operation,easy maintenance online,etc.
TECHNICAL DATA
| Inlet pressure | Pemax.≤6 bar | |
| Shut-off when over-pressure | Who:22.5-450 mbar | |
| Inlet pressure range | Bpe: 0.5-5 bar | |
| Shut-off when low-pressure | Whu:12.8-250 mbar | |
| Outlet pressure set range | standard | Wh: 15-70 mbar |
| HP | Wh:70-300 mbar | |
| Shut-off accuracy | AG: ≤5% | |
| Accuracy class | AC: ±8% | |
| Response time | Ta: ≤1 sec | |
| Shut-off pressure class | SG: +20% | |
| Flow rate (natural gas) | Qmax. ≤900Nm³/h | |
| Operating temprature | -20℃-60℃ | |
| Connection size | DN50 PN16 | |
| Ambient temperature | -30℃-60℃ | |
| Weight | Low pressure type:19kgHigh pressure type:21kg | |
CAPACITY CHART
| Outletpressure(mbar) | Inlet pressure (bar) | ||||||||||||||
| 0.05 | 0.07 | 0.1 | 0.15 | 0.2 | 0.3 | 0.4 | 0.5 | 0.75 | 1 | 1.5 | 2 | 3 | 4 | ||
| STANDARD | 15 | 80 | 100 | 120 | 150 | 170 | 220 | 250 | 280 | 340 | 400 | 500 | 600 | 650 | 750 |
| 20 | 75 | 100 | 120 | 150 | 170 | 220 | 250 | 280 | 340 | 400 | 500 | 600 | 650 | 750 | |
| 30 | 60 | 90 | 110 | 150 | 170 | 220 | 250 | 280 | 340 | 400 | 500 | 600 | 650 | 750 | |
| 40 | - | 80 | 100 | 140 | 170 | 210 | 250 | 280 | 340 | 400 | 500 | 600 | 650 | 750 | |
| 50 | - | 70 | 90 | 140 | 160 | 210 | 240 | 270 | 340 | 400 | 500 | 600 | 650 | 750 | |
| 75 | - | - | 70 | 90 | 150 | 200 | 240 | 270 | 340 | 400 | 500 | 600 | 650 | 750 | |
|
AP |
100 | - | - | - | - | 140 | 190 | 230 | 250 | 340 | 400 | 500 | 600 | 650 | 750 |
| 150 | - | - | - | - | 100 | 170 | 220 | 250 | 330 | 390 | 500 | 600 | 650 | 750 | |
| 200 | - | - | - | - | - | 140 | 200 | 240 | 310 | 380 | 500 | 600 | 650 | 750 | |
| 300 | - | - | - | - | - | - | 150 | 210 | 310 | 380 | 500 | 600 | 650 | 750 | |
Capacities (cu.m./hr) are applicable to natural gas with a specific gravity of 0.702. For other gases, the values shown in the chart below must be multiplied by 0.595 for propane, 0.518 for butane, 0.755 for nitrogen and 0.744 for air.

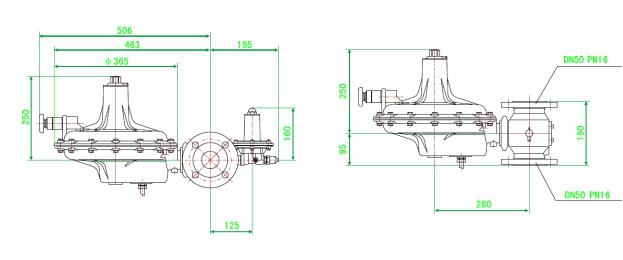

OUTLINE DIMENSIONS (mm)
