Top Grade Lpg Gas Cylinder Regulator Type - LQ10/LQ25 SERIES PRESSURE REGULATORS – Ainuo Technology
Short Description:
INTERNAL RELIEF VALVLE AND FILTER OPTIONAL MAXIMUM AND/OR MINIMUM PRESSURE SLAM-SHUT VALVE WIDE OUTLET-PRESSURE REGULATION RANGE ACCURATE PRESSURE REGULATION MANUAL RESET TWO-STAGE REGULATION LQ10LQ25 series is direct acting of two-level regulator, Widely used for transmission and distribution of nature gas,liquefied petroleum gas or other non-corrosive gas for industrial users and residential users.Built-in filter,relief valve and overpressure cut off protection devices.With characterstics ...
Top Grade Lpg Gas Cylinder Regulator Type - LQ10/LQ25 SERIES PRESSURE REGULATORS – Ainuo Technology Detail:
INTERNAL RELIEF VALVLE AND FILTER
OPTIONAL MAXIMUM AND/OR MINIMUM PRESSURE SLAM-SHUT VALVE
WIDE OUTLET-PRESSURE REGULATION RANGE
ACCURATE PRESSURE REGULATION
MANUAL RESET
TWO-STAGE REGULATION
LQ10LQ25 series is direct acting of two-level regulator, Widely used for transmission and distribution of nature gas,liquefied petroleum gas or other non-corrosive gas for industrial users and residential users.Built-in filter,relief valve and overpressure cut off protection devices.With characterstics of small size,easy to stall,pressure stability,rapid reponse.
TECHNICAL DATA
| Inlet pressure | Pemax.≤6 bar |
| Inlet pressure range | Bpe:0.5-5 bar |
| Outlet pressure set range | Wh:15-100 mbar |
| Shut-off accuracy | AG: ≤5% |
| Accuracy class | AC: ±10% |
| Response time | Ta: ≤1 sec |
| Shut-off pressure class | SG: +20% |
| Flow rate (natural gas) | Qmax. ≤25Nm³/h |
| Operating temprature | -20℃-60℃ |
| Threaded connection | 3/4”Χ1 1/4” |
| Ambient temperature | -30℃-60℃ |
| Weight | 2kg |
CAPACITY CHART
The flow unit is standard cubic meters/hour.The flow of nature gas is relative density of 0.6 under standard condicions.
|
Outlet pressure （mbar） |
Inlet pressure（bar） |
||||||
|
0.05 （bar） |
0.1 （bar） |
0.25 （bar） |
0.5 （bar） |
0.75 （bar） |
1 （bar） |
1-6 （bar） |
|
|
15 |
5 |
12 |
17 |
25 |
25 |
25 |
25 |
|
20 |
4 |
12 |
17 |
25 |
25 |
25 |
25 |
|
30 |
- |
10 |
17 |
25 |
25 |
25 |
25 |
|
40 |
- |
5 |
12 |
25 |
25 |
25 |
25 |
|
50 |
- |
- |
12 |
25 |
25 |
25 |
25 |
|
60 |
- |
- |
10 |
25 |
25 |
25 |
25 |
|
70 |
- |
- |
- |
25 |
25 |
25 |
25 |

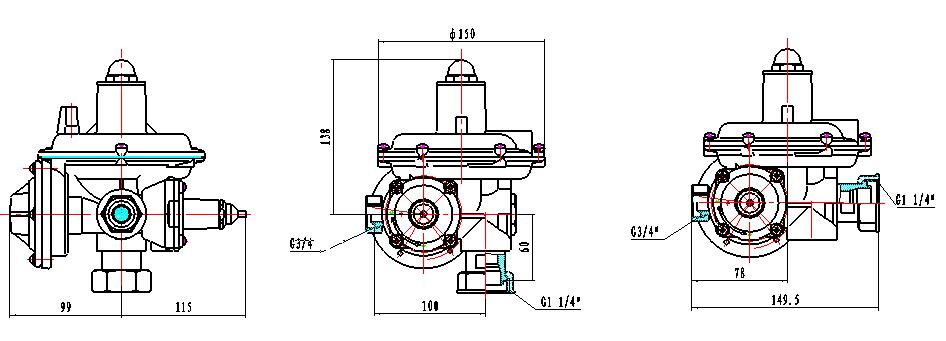

OUTLINE DIMENSIONS (mm)

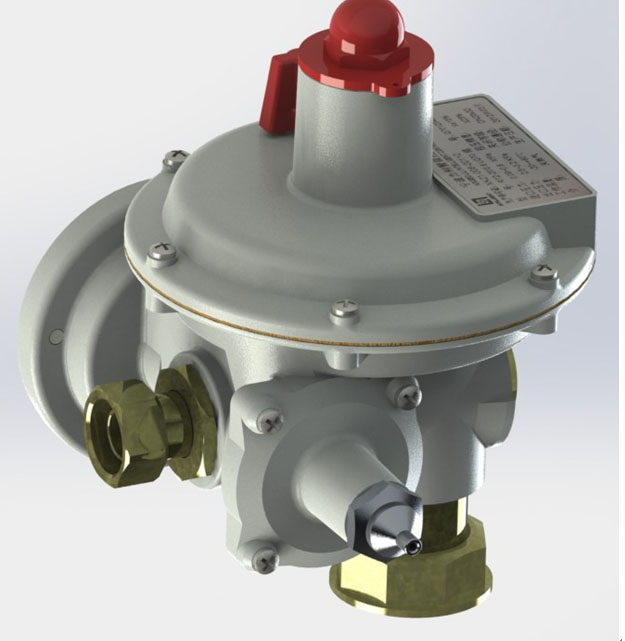

Product detail pictures:
